1.1 Amorphous Network and Thermal Stability

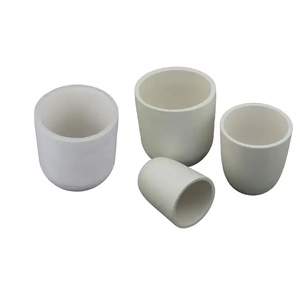

(Quartz Crucibles)

Quartz crucibles are high-temperature containers produced from fused silica, a synthetic form of silicon dioxide (SiO ₂) derived from the melting of natural quartz crystals at temperatures surpassing 1700 ° C.

Unlike crystalline quartz, integrated silica has an amorphous three-dimensional network of corner-sharing SiO ₄ tetrahedra, which imparts remarkable thermal shock resistance and dimensional stability under fast temperature level adjustments.

This disordered atomic structure stops cleavage along crystallographic planes, making integrated silica less vulnerable to fracturing throughout thermal biking contrasted to polycrystalline porcelains.

The product displays a reduced coefficient of thermal expansion (~ 0.5 × 10 ⁻⁶/ K), among the most affordable among engineering products, allowing it to stand up to severe thermal gradients without fracturing– a critical residential or commercial property in semiconductor and solar cell production.

Fused silica additionally preserves excellent chemical inertness against a lot of acids, molten steels, and slags, although it can be slowly etched by hydrofluoric acid and warm phosphoric acid.

Its high conditioning point (~ 1600– 1730 ° C, depending upon purity and OH web content) permits sustained operation at raised temperature levels required for crystal growth and metal refining procedures.

1.2 Pureness Grading and Micronutrient Control

The efficiency of quartz crucibles is highly dependent on chemical pureness, specifically the focus of metal pollutants such as iron, sodium, potassium, light weight aluminum, and titanium.

Also trace quantities (parts per million level) of these pollutants can move into liquified silicon during crystal development, deteriorating the electric residential properties of the resulting semiconductor material.

High-purity grades used in electronic devices producing usually consist of over 99.95% SiO TWO, with alkali steel oxides restricted to less than 10 ppm and change steels listed below 1 ppm.

Pollutants stem from raw quartz feedstock or processing devices and are lessened through mindful choice of mineral sources and filtration techniques like acid leaching and flotation.

In addition, the hydroxyl (OH) content in integrated silica affects its thermomechanical actions; high-OH kinds use better UV transmission however reduced thermal security, while low-OH variants are chosen for high-temperature applications as a result of lowered bubble development.

( Quartz Crucibles)

2. Manufacturing Refine and Microstructural Layout

2.1 Electrofusion and Developing Strategies

Quartz crucibles are mainly created via electrofusion, a process in which high-purity quartz powder is fed right into a revolving graphite mold and mildew within an electrical arc furnace.

An electric arc generated between carbon electrodes thaws the quartz bits, which solidify layer by layer to develop a smooth, thick crucible form.

This technique creates a fine-grained, homogeneous microstructure with very little bubbles and striae, vital for uniform heat distribution and mechanical honesty.

Different approaches such as plasma fusion and fire combination are used for specialized applications needing ultra-low contamination or details wall density accounts.

After casting, the crucibles go through controlled air conditioning (annealing) to eliminate internal stresses and avoid spontaneous cracking during service.

Surface ending up, consisting of grinding and polishing, guarantees dimensional accuracy and minimizes nucleation sites for unwanted crystallization throughout usage.

2.2 Crystalline Layer Engineering and Opacity Control

A defining feature of modern quartz crucibles, particularly those made use of in directional solidification of multicrystalline silicon, is the crafted internal layer framework.

During production, the internal surface area is commonly dealt with to promote the development of a thin, regulated layer of cristobalite– a high-temperature polymorph of SiO TWO– upon very first heating.

This cristobalite layer functions as a diffusion barrier, decreasing direct communication in between molten silicon and the underlying fused silica, therefore reducing oxygen and metal contamination.

Furthermore, the visibility of this crystalline phase improves opacity, enhancing infrared radiation absorption and advertising even more consistent temperature distribution within the melt.

Crucible developers meticulously balance the thickness and connection of this layer to avoid spalling or splitting due to quantity modifications throughout stage changes.

3. Practical Efficiency in High-Temperature Applications

3.1 Role in Silicon Crystal Development Processes

Quartz crucibles are important in the manufacturing of monocrystalline and multicrystalline silicon, functioning as the key container for liquified silicon in Czochralski (CZ) and directional solidification systems (DS).

In the CZ procedure, a seed crystal is dipped right into liquified silicon held in a quartz crucible and slowly pulled up while revolving, allowing single-crystal ingots to develop.

Although the crucible does not directly speak to the growing crystal, communications in between liquified silicon and SiO ₂ wall surfaces bring about oxygen dissolution into the melt, which can influence service provider life time and mechanical toughness in finished wafers.

In DS procedures for photovoltaic-grade silicon, large-scale quartz crucibles make it possible for the controlled cooling of countless kilos of liquified silicon into block-shaped ingots.

Below, layers such as silicon nitride (Si five N FOUR) are put on the internal surface area to stop adhesion and assist in easy release of the solidified silicon block after cooling down.

3.2 Degradation Systems and Life Span Limitations

Regardless of their effectiveness, quartz crucibles degrade during duplicated high-temperature cycles as a result of a number of related systems.

Thick circulation or contortion happens at extended exposure over 1400 ° C, resulting in wall thinning and loss of geometric integrity.

Re-crystallization of fused silica right into cristobalite creates inner tensions because of quantity growth, possibly creating fractures or spallation that infect the thaw.

Chemical disintegration emerges from reduction reactions in between molten silicon and SiO ₂: SiO TWO + Si → 2SiO(g), generating unstable silicon monoxide that runs away and deteriorates the crucible wall.

Bubble formation, driven by caught gases or OH teams, further jeopardizes architectural toughness and thermal conductivity.

These destruction pathways restrict the variety of reuse cycles and require exact process control to maximize crucible life expectancy and item yield.

4. Arising Advancements and Technological Adaptations

4.1 Coatings and Compound Adjustments

To boost performance and durability, advanced quartz crucibles incorporate practical finishes and composite structures.

Silicon-based anti-sticking layers and doped silica coatings improve launch attributes and decrease oxygen outgassing throughout melting.

Some producers integrate zirconia (ZrO TWO) bits right into the crucible wall to raise mechanical toughness and resistance to devitrification.

Study is continuous into fully clear or gradient-structured crucibles created to maximize convected heat transfer in next-generation solar furnace designs.

4.2 Sustainability and Recycling Challenges

With increasing need from the semiconductor and solar markets, sustainable use of quartz crucibles has ended up being a top priority.

Used crucibles contaminated with silicon residue are difficult to reuse because of cross-contamination risks, resulting in considerable waste generation.

Initiatives concentrate on developing recyclable crucible liners, boosted cleaning protocols, and closed-loop recycling systems to recoup high-purity silica for secondary applications.

As gadget effectiveness demand ever-higher product pureness, the function of quartz crucibles will certainly remain to evolve via advancement in materials science and procedure engineering.

In summary, quartz crucibles stand for a vital interface in between basic materials and high-performance electronic items.

Their one-of-a-kind mix of purity, thermal strength, and architectural layout makes it possible for the construction of silicon-based modern technologies that power modern-day computer and renewable resource systems.
