1. Material Principles and Microstructural Features of Alumina Ceramics
1.1 Composition, Pureness Grades, and Crystallographic Properties

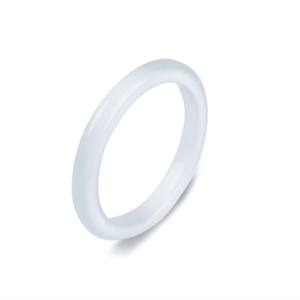

(Alumina Ceramic Wear Liners)
Alumina (Al â‚‚ O TWO), or aluminum oxide, is just one of one of the most widely used technical ceramics in industrial design due to its exceptional equilibrium of mechanical stamina, chemical security, and cost-effectiveness.
When crafted into wear linings, alumina ceramics are typically made with purity levels ranging from 85% to 99.9%, with higher pureness corresponding to boosted solidity, wear resistance, and thermal efficiency.
The leading crystalline stage is alpha-alumina, which embraces a hexagonal close-packed (HCP) structure identified by strong ionic and covalent bonding, adding to its high melting factor (~ 2072 ° C )and low thermal conductivity.
Microstructurally, alumina ceramics include fine, equiaxed grains whose dimension and distribution are controlled throughout sintering to optimize mechanical residential or commercial properties.
Grain dimensions generally vary from submicron to a number of micrometers, with better grains usually enhancing fracture strength and resistance to split propagation under rough packing.
Small additives such as magnesium oxide (MgO) are commonly introduced in trace amounts to hinder uncommon grain development during high-temperature sintering, making sure consistent microstructure and dimensional stability.
The resulting product exhibits a Vickers firmness of 1500– 2000 HV, significantly going beyond that of solidified steel (generally 600– 800 HV), making it exceptionally immune to surface destruction in high-wear settings.
1.2 Mechanical and Thermal Performance in Industrial Conditions
Alumina ceramic wear liners are selected primarily for their impressive resistance to abrasive, erosive, and gliding wear mechanisms widespread in bulk product dealing with systems.
They possess high compressive stamina (as much as 3000 MPa), great flexural strength (300– 500 MPa), and superb tightness (Youthful’s modulus of ~ 380 Grade point average), enabling them to hold up against intense mechanical loading without plastic contortion.
Although inherently fragile contrasted to steels, their reduced coefficient of rubbing and high surface solidity lessen particle adhesion and minimize wear rates by orders of size relative to steel or polymer-based options.
Thermally, alumina preserves architectural integrity approximately 1600 ° C in oxidizing ambiences, enabling use in high-temperature handling environments such as kiln feed systems, central heating boiler ducting, and pyroprocessing devices.

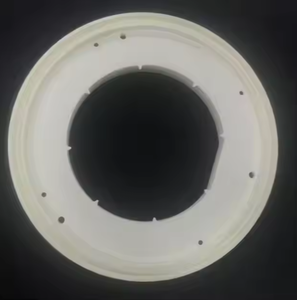

( Alumina Ceramic Wear Liners)
Its reduced thermal development coefficient (~ 8 × 10 â»â¶/ K) contributes to dimensional security during thermal biking, decreasing the threat of cracking because of thermal shock when appropriately set up.
In addition, alumina is electrically shielding and chemically inert to a lot of acids, antacid, and solvents, making it appropriate for destructive atmospheres where metal liners would deteriorate rapidly.
These consolidated residential properties make alumina porcelains suitable for shielding essential facilities in mining, power generation, concrete production, and chemical handling markets.
2. Production Processes and Layout Combination Methods
2.1 Shaping, Sintering, and Quality Assurance Protocols
The manufacturing of alumina ceramic wear linings includes a series of precision manufacturing actions developed to achieve high density, very little porosity, and regular mechanical efficiency.
Raw alumina powders are processed with milling, granulation, and creating methods such as completely dry pushing, isostatic pushing, or extrusion, depending on the wanted geometry– floor tiles, plates, pipelines, or custom-shaped sections.
Environment-friendly bodies are after that sintered at temperatures in between 1500 ° C and 1700 ° C in air, promoting densification with solid-state diffusion and accomplishing relative thickness surpassing 95%, frequently approaching 99% of theoretical thickness.
Complete densification is important, as recurring porosity works as tension concentrators and speeds up wear and crack under service conditions.
Post-sintering operations might include diamond grinding or splashing to attain limited dimensional tolerances and smooth surface area coatings that decrease friction and bit capturing.
Each batch undertakes strenuous quality control, consisting of X-ray diffraction (XRD) for stage evaluation, scanning electron microscopy (SEM) for microstructural examination, and hardness and bend screening to verify conformity with international criteria such as ISO 6474 or ASTM B407.
2.2 Mounting Methods and System Compatibility Considerations
Efficient integration of alumina wear linings into commercial equipment calls for cautious attention to mechanical add-on and thermal growth compatibility.
Usual installation methods consist of sticky bonding utilizing high-strength ceramic epoxies, mechanical attaching with studs or supports, and embedding within castable refractory matrices.
Sticky bonding is extensively made use of for level or gently bent surface areas, providing consistent stress circulation and vibration damping, while stud-mounted systems allow for very easy substitute and are liked in high-impact areas.
To accommodate differential thermal development in between alumina and metal substrates (e.g., carbon steel), engineered spaces, flexible adhesives, or certified underlayers are integrated to prevent delamination or fracturing during thermal transients.
Developers have to additionally take into consideration edge protection, as ceramic tiles are prone to breaking at subjected corners; solutions consist of diagonal edges, steel shrouds, or overlapping floor tile arrangements.
Correct setup makes certain lengthy life span and takes full advantage of the safety feature of the lining system.
3. Put On Devices and Performance Analysis in Solution Environments
3.1 Resistance to Abrasive, Erosive, and Effect Loading
Alumina ceramic wear linings master environments controlled by three primary wear mechanisms: two-body abrasion, three-body abrasion, and bit disintegration.
In two-body abrasion, hard particles or surface areas directly gouge the liner surface area, a common incident in chutes, receptacles, and conveyor transitions.
Three-body abrasion involves loose fragments entraped between the liner and moving material, bring about rolling and damaging activity that progressively eliminates product.
Erosive wear happens when high-velocity bits impinge on the surface, particularly in pneumatic communicating lines and cyclone separators.
Because of its high firmness and reduced fracture strength, alumina is most efficient in low-impact, high-abrasion circumstances.
It performs incredibly well against siliceous ores, coal, fly ash, and cement clinker, where wear prices can be minimized by 10– 50 times contrasted to moderate steel linings.
Nonetheless, in applications involving repeated high-energy impact, such as key crusher chambers, hybrid systems incorporating alumina floor tiles with elastomeric supports or metal guards are often utilized to absorb shock and protect against fracture.
3.2 Area Testing, Life Cycle Evaluation, and Failure Setting Assessment
Efficiency analysis of alumina wear liners includes both laboratory testing and area surveillance.
Standardized examinations such as the ASTM G65 completely dry sand rubber wheel abrasion test provide relative wear indices, while customized slurry disintegration rigs imitate site-specific problems.
In industrial settings, put on rate is commonly measured in mm/year or g/kWh, with life span estimates based on preliminary thickness and observed destruction.
Failure modes consist of surface area sprucing up, micro-cracking, spalling at sides, and complete ceramic tile dislodgement due to sticky destruction or mechanical overload.
Origin evaluation commonly reveals installment mistakes, inappropriate quality selection, or unforeseen effect tons as primary contributors to premature failing.
Life process price evaluation regularly shows that in spite of greater first prices, alumina liners provide superior total expense of ownership due to prolonged substitute intervals, lowered downtime, and lower upkeep labor.
4. Industrial Applications and Future Technological Advancements
4.1 Sector-Specific Implementations Across Heavy Industries
Alumina ceramic wear linings are released across a broad range of industrial sectors where product destruction poses operational and economic obstacles.
In mining and mineral processing, they secure transfer chutes, mill linings, hydrocyclones, and slurry pumps from abrasive slurries including quartz, hematite, and various other tough minerals.
In power plants, alumina floor tiles line coal pulverizer ducts, central heating boiler ash hoppers, and electrostatic precipitator parts exposed to fly ash erosion.
Cement manufacturers make use of alumina linings in raw mills, kiln inlet areas, and clinker conveyors to fight the highly abrasive nature of cementitious products.
The steel industry utilizes them in blast heater feed systems and ladle shadows, where resistance to both abrasion and modest thermal loads is necessary.
Also in less traditional applications such as waste-to-energy plants and biomass handling systems, alumina porcelains supply long lasting security against chemically aggressive and fibrous products.
4.2 Arising Patterns: Composite Solutions, Smart Liners, and Sustainability
Present study focuses on boosting the sturdiness and capability of alumina wear systems with composite design.
Alumina-zirconia (Al Two O ₃-ZrO ₂) composites take advantage of change toughening from zirconia to enhance split resistance, while alumina-titanium carbide (Al ₂ O ₃-TiC) grades use boosted efficiency in high-temperature sliding wear.
One more innovation involves installing sensing units within or beneath ceramic liners to keep an eye on wear progression, temperature level, and influence regularity– enabling anticipating maintenance and digital twin assimilation.
From a sustainability perspective, the prolonged life span of alumina linings decreases material consumption and waste generation, straightening with round economic situation principles in commercial procedures.
Recycling of spent ceramic liners into refractory accumulations or building and construction materials is additionally being explored to decrease ecological footprint.
In conclusion, alumina ceramic wear linings represent a foundation of contemporary commercial wear security innovation.
Their exceptional hardness, thermal security, and chemical inertness, integrated with fully grown manufacturing and installment practices, make them vital in combating product degradation throughout heavy sectors.
As material scientific research advances and digital tracking becomes extra incorporated, the future generation of wise, durable alumina-based systems will certainly further boost operational effectiveness and sustainability in abrasive atmospheres.
