Silicon-controlled rectifiers (SCRs), also called thyristors, are semiconductor power devices with a four-layer three-way junction framework (PNPN). Because its intro in the 1950s, SCRs have been widely made use of in industrial automation, power systems, home appliance control and various other areas because of their high endure voltage, big existing carrying ability, fast action and basic control. With the development of modern technology, SCRs have actually progressed into numerous types, consisting of unidirectional SCRs, bidirectional SCRs (TRIACs), turn-off thyristors (GTOs) and light-controlled thyristors (LTTs). The distinctions in between these types are not only shown in the framework and working concept, but additionally identify their applicability in different application situations. This post will begin with a technical viewpoint, combined with details specifications, to deeply assess the primary distinctions and common uses these 4 SCRs.
Unidirectional SCR: Basic and secure application core
Unidirectional SCR is the most basic and usual sort of thyristor. Its structure is a four-layer three-junction PNPN setup, including 3 electrodes: anode (A), cathode (K) and gate (G). It only permits existing to flow in one instructions (from anode to cathode) and turns on after the gate is activated. As soon as switched on, also if eviction signal is eliminated, as long as the anode current is above the holding present (generally less than 100mA), the SCR continues to be on.

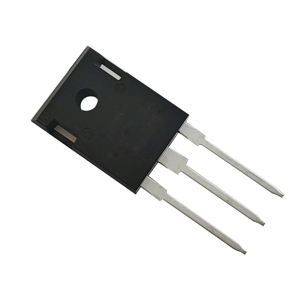

(Thyristor Rectifier)
Unidirectional SCR has solid voltage and present resistance, with an onward repetitive top voltage (V DRM) of up to 6500V and a rated on-state typical existing (ITAV) of as much as 5000A. Consequently, it is commonly utilized in DC motor control, industrial heating systems, uninterruptible power supply (UPS) correction parts, power conditioning devices and various other events that require continual transmission and high power handling. Its benefits are straightforward framework, inexpensive and high reliability, and it is a core part of many typical power control systems.
Bidirectional SCR (TRIAC): Suitable for air conditioner control
Unlike unidirectional SCR, bidirectional SCR, likewise known as TRIAC, can achieve bidirectional transmission in both favorable and adverse half cycles. This framework consists of two anti-parallel SCRs, which enable TRIAC to be set off and switched on at any time in the AC cycle without transforming the circuit link method. The in proportion transmission voltage series of TRIAC is usually ± 400 ~ 800V, the maximum tons current has to do with 100A, and the trigger current is less than 50mA.
Because of the bidirectional conduction attributes of TRIAC, it is specifically appropriate for air conditioning dimming and rate control in household devices and customer electronics. As an example, gadgets such as light dimmers, follower controllers, and air conditioner fan speed regulatory authorities all rely on TRIAC to accomplish smooth power regulation. Furthermore, TRIAC also has a lower driving power demand and is suitable for integrated design, so it has been widely utilized in clever home systems and little devices. Although the power thickness and changing rate of TRIAC are not as good as those of brand-new power gadgets, its affordable and convenient use make it an important player in the field of little and moderate power air conditioner control.
Gateway Turn-Off Thyristor (GTO): A high-performance rep of active control
Gate Turn-Off Thyristor (GTO) is a high-performance power tool developed on the basis of conventional SCR. Unlike average SCR, which can just be switched off passively, GTO can be switched off proactively by using a negative pulse present to the gate, thus attaining more adaptable control. This function makes GTO do well in systems that need constant start-stop or quick feedback.

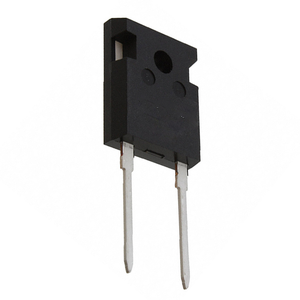

(Thyristor Rectifier)
The technical parameters of GTO reveal that it has exceptionally high power managing capacity: the turn-off gain is about 4 ~ 5, the optimum operating voltage can reach 6000V, and the maximum operating current is up to 6000A. The turn-on time has to do with 1μs, and the turn-off time is 2 ~ 5μs. These performance signs make GTO extensively made use of in high-power circumstances such as electric locomotive grip systems, big inverters, industrial motor regularity conversion control, and high-voltage DC transmission systems. Although the drive circuit of GTO is fairly complicated and has high switching losses, its performance under high power and high vibrant response needs is still irreplaceable.
Light-controlled thyristor (LTT): A trustworthy selection in the high-voltage isolation setting
Light-controlled thyristor (LTT) uses optical signals rather than electrical signals to set off conduction, which is its biggest attribute that distinguishes it from other kinds of SCRs. The optical trigger wavelength of LTT is generally between 850nm and 950nm, the response time is gauged in milliseconds, and the insulation degree can be as high as 100kV or above. This optoelectronic seclusion device substantially improves the system’s anti-electromagnetic disturbance capability and safety.
LTT is generally made use of in ultra-high voltage straight present transmission (UHVDC), power system relay protection devices, electro-magnetic compatibility protection in clinical equipment, and army radar communication systems and so on, which have incredibly high needs for security and stability. For example, lots of converter terminals in China’s “West-to-East Power Transmission” task have adopted LTT-based converter valve modules to make sure steady procedure under incredibly high voltage conditions. Some progressed LTTs can also be incorporated with gateway control to accomplish bidirectional transmission or turn-off features, even more expanding their application range and making them an excellent option for resolving high-voltage and high-current control issues.
