As a vital inorganic functional product, oxide powder plays an irreplaceable duty in innovative porcelains, digital gadgets, catalytic chemical engineering and biomedicine. This paper methodically assesses the physicochemical properties, microstructural features and application differences of regular oxide powders such as Al2O2, SiO2, TiO2, ZrO2 and MgO. Studies have actually shown that different oxides exhibit substantially different efficiency features as a result of their one-of-a-kind crystal framework and chemical make-up: Al2O2 is recognized for its high solidity and stability, ZrO2 has excellent phase modification toughening properties, TiO2 shows outstanding photoelectric properties, SiO2 has excellent surface area adjustability, and MgO shows one-of-a-kind alkaline characteristics. With the advancement of nanotechnology, the prep work process of oxide powders has actually been continually introduced, and its performance law and application expansion have come to be a research study hotspot in products scientific research. This paper methodically compares multiple measurements, such as crystallographic buildings, surface area residential or commercial properties, and thermodynamic habits, to provide an academic basis for material option in design applications.
Physical and chemical buildings and functional qualities
The efficiency distinctions of oxide powders are very first mirrored in the crystal framework qualities. Al2O2 exists mainly in the form of α phase (hexagonal close-packed) and γ stage (cubic flaw spinel), among which α-Al2O2 has incredibly high structural stability (melting point 2054 ℃); SiO2 has numerous crystal types such as quartz and cristobalite, and its silicon-oxygen tetrahedral framework leads to reduced thermal conductivity; the anatase and rutile frameworks of TiO2 have considerable distinctions in photocatalytic efficiency; the tetragonal and monoclinic phase changes of ZrO2 are come with by a 3-5% volume change; the NaCl-type cubic structure of MgO gives it superb alkalinity qualities. In terms of surface area residential properties, the certain surface area of SiO2 created by the gas stage technique can reach 200-400m ²/ g, while that of fused quartz is only 0.5-2m ²/ g; the equiaxed morphology of Al2O2 powder is conducive to sintering densification, and the nano-scale dispersion of ZrO2 can significantly enhance the toughness of porcelains.

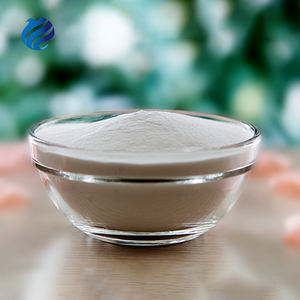

(Oxide Powder)
In terms of thermodynamic and mechanical buildings, ZrO â‚‚ goes through a martensitic phase makeover at high temperatures (> 1170 ° C) and can be fully maintained by including 3mol% Y â‚‚ O FIVE; the thermal expansion coefficient of Al â‚‚ O THREE (8.1 × 10 â»â¶/ K) matches well with many metals; the Vickers solidity of α-Al â‚‚ O five can reach 20GPa, making it a crucial wear-resistant material; partly supported ZrO two boosts the fracture toughness to over 10MPa · m 1ST/ two with a stage makeover toughening system. In terms of useful homes, the bandgap size of TiO â‚‚ (3.2 eV for anatase and 3.0 eV for rutile) establishes its outstanding ultraviolet light reaction qualities; the oxygen ion conductivity of ZrO â‚‚ (σ=0.1S/cm@1000℃) makes it the first choice for SOFC electrolytes; the high resistivity of α-Al two O SIX (> 10 ¹ⴠΩ · cm) satisfies the demands of insulation packaging.
Application fields and chemical security
In the field of structural porcelains, high-purity α-Al ₂ O TWO (> 99.5%) is utilized for cutting devices and shield security, and its bending strength can get to 500MPa; Y-TZP shows exceptional biocompatibility in oral restorations; MgO partly supported ZrO two is utilized for engine parts, and its temperature resistance can reach 1400 ℃. In terms of catalysis and provider, the big particular surface of γ-Al ₂ O FOUR (150-300m TWO/ g)makes it a high-grade stimulant carrier; the photocatalytic activity of TiO ₂ is greater than 85% efficient in ecological purification; CeO TWO-ZrO ₂ solid option is made use of in automobile three-way catalysts, and the oxygen storage ability reaches 300μmol/ g.
A comparison of chemical security shows that α-Al â‚‚ O five has outstanding rust resistance in the pH series of 3-11; ZrO â‚‚ shows superb corrosion resistance to thaw steel; SiO two dissolves at a price of up to 10 â»â¶ g/(m ² · s) in an alkaline atmosphere. In terms of surface area reactivity, the alkaline surface area of MgO can effectively adsorb acidic gases; the surface area silanol groups of SiO â‚‚ (4-6/ nm TWO) supply adjustment websites; the surface oxygen openings of ZrO â‚‚ are the structural basis of its catalytic activity.
Prep work process and cost evaluation
The preparation process substantially impacts the performance of oxide powders. SiO â‚‚ prepared by the sol-gel method has a manageable mesoporous framework (pore dimension 2-50nm); Al â‚‚ O six powder prepared by plasma approach can get to 99.99% purity; TiO two nanorods synthesized by the hydrothermal approach have an adjustable facet proportion (5-20). The post-treatment process is additionally crucial: calcination temperature level has a definitive impact on Al two O three stage transition; sphere milling can lower ZrO â‚‚ bit size from micron degree to below 100nm; surface alteration can considerably boost the dispersibility of SiO two in polymers.
In regards to cost and automation, industrial-grade Al ₂ O ₃ (1.5 − 3/kg) has substantial price advantages ； High Purtiy ZrO2 （ 1.5 − 3/kg ） also does ； High Purtiy ZrO2 (50-100/ kg) is substantially influenced by unusual planet ingredients; gas stage SiO TWO ($10-30/ kg) is 3-5 times extra costly than the precipitation approach. In regards to large manufacturing, the Bayer procedure of Al two O five is fully grown, with a yearly production capacity of over one million lots; the chlor-alkali process of ZrO ₂ has high power usage (> 30kWh/kg); the chlorination procedure of TiO two faces ecological pressure.
Emerging applications and growth patterns
In the energy field, Li â‚„ Ti Five O â‚â‚‚ has absolutely no stress characteristics as an adverse electrode material; the performance of TiO two nanotube arrays in perovskite solar cells goes beyond 18%. In biomedicine, the fatigue life of ZrO â‚‚ implants goes beyond 10 â· cycles; nano-MgO exhibits anti-bacterial residential or commercial properties (anti-bacterial price > 99%); the medication loading of mesoporous SiO â‚‚ can reach 300mg/g.

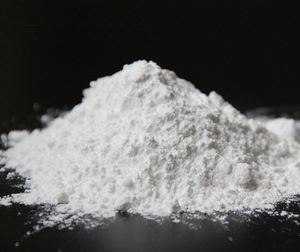

(Oxide Powder)
Future growth instructions consist of creating new doping systems (such as high entropy oxides), precisely controlling surface area termination groups, creating environment-friendly and low-cost preparation processes, and discovering new cross-scale composite mechanisms. Via multi-scale architectural regulation and interface engineering, the performance limits of oxide powders will continue to increase, giving advanced material services for new power, environmental administration, biomedicine and other areas. In sensible applications, it is necessary to adequately think about the inherent residential properties of the product, procedure problems and price variables to select the most appropriate sort of oxide powder. Al Two O ₃ is suitable for high mechanical anxiety atmospheres, ZrO ₂ is suitable for the biomedical area, TiO two has noticeable benefits in photocatalysis, SiO two is an optimal service provider material, and MgO appropriates for special chain reaction settings. With the improvement of characterization innovation and preparation modern technology, the efficiency optimization and application development of oxide powders will certainly usher in innovations.
