1. Material Basics and Morphological Advantages
1.1 Crystal Framework and Chemical Make-up

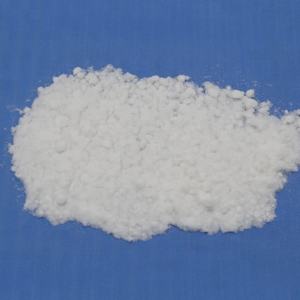

(Spherical alumina)
Spherical alumina, or round light weight aluminum oxide (Al two O TWO), is a synthetically generated ceramic product defined by a well-defined globular morphology and a crystalline structure mainly in the alpha (α) stage.
Alpha-alumina, the most thermodynamically steady polymorph, includes a hexagonal close-packed setup of oxygen ions with aluminum ions occupying two-thirds of the octahedral interstices, causing high lattice power and remarkable chemical inertness.
This stage displays exceptional thermal stability, keeping honesty up to 1800 ° C, and withstands response with acids, antacid, and molten metals under the majority of industrial conditions.
Unlike irregular or angular alumina powders derived from bauxite calcination, spherical alumina is engineered via high-temperature processes such as plasma spheroidization or flame synthesis to accomplish consistent roundness and smooth surface appearance.
The improvement from angular forerunner bits– frequently calcined bauxite or gibbsite– to thick, isotropic balls removes sharp edges and interior porosity, improving packaging effectiveness and mechanical resilience.
High-purity grades (≥ 99.5% Al ₂ O FIVE) are necessary for digital and semiconductor applications where ionic contamination must be minimized.
1.2 Particle Geometry and Packaging Habits
The specifying attribute of round alumina is its near-perfect sphericity, normally measured by a sphericity index > 0.9, which considerably influences its flowability and packing density in composite systems.
As opposed to angular particles that interlock and develop gaps, round fragments roll past one another with very little friction, enabling high solids filling during solution of thermal user interface materials (TIMs), encapsulants, and potting compounds.
This geometric uniformity enables maximum theoretical packaging densities going beyond 70 vol%, far surpassing the 50– 60 vol% typical of irregular fillers.
Higher filler filling directly translates to enhanced thermal conductivity in polymer matrices, as the continuous ceramic network supplies effective phonon transportation paths.
Furthermore, the smooth surface lowers endure processing devices and reduces thickness surge throughout blending, enhancing processability and diffusion security.
The isotropic nature of rounds also protects against orientation-dependent anisotropy in thermal and mechanical homes, ensuring constant efficiency in all instructions.
2. Synthesis Approaches and Quality Control
2.1 High-Temperature Spheroidization Strategies
The production of round alumina primarily relies upon thermal techniques that thaw angular alumina bits and allow surface area stress to reshape them into rounds.

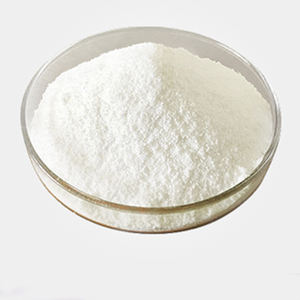

( Spherical alumina)
Plasma spheroidization is the most commonly made use of industrial approach, where alumina powder is injected right into a high-temperature plasma fire (approximately 10,000 K), causing rapid melting and surface area tension-driven densification right into excellent rounds.
The liquified droplets solidify quickly throughout flight, creating dense, non-porous bits with consistent size distribution when combined with exact category.
Different techniques include fire spheroidization utilizing oxy-fuel torches and microwave-assisted heating, though these normally supply reduced throughput or much less control over particle dimension.
The beginning product’s pureness and fragment size circulation are critical; submicron or micron-scale forerunners produce similarly sized rounds after processing.
Post-synthesis, the product goes through rigorous sieving, electrostatic splitting up, and laser diffraction evaluation to make sure tight fragment dimension circulation (PSD), usually ranging from 1 to 50 µm depending on application.
2.2 Surface Area Modification and Practical Tailoring
To enhance compatibility with organic matrices such as silicones, epoxies, and polyurethanes, round alumina is usually surface-treated with coupling representatives.
Silane coupling agents– such as amino, epoxy, or plastic functional silanes– kind covalent bonds with hydroxyl teams on the alumina surface area while providing natural performance that engages with the polymer matrix.
This treatment improves interfacial bond, minimizes filler-matrix thermal resistance, and avoids load, bring about more uniform composites with premium mechanical and thermal performance.
Surface area coverings can also be crafted to pass on hydrophobicity, boost dispersion in nonpolar materials, or make it possible for stimuli-responsive actions in smart thermal materials.
Quality assurance includes measurements of wager surface area, tap thickness, thermal conductivity (commonly 25– 35 W/(m · K )for dense α-alumina), and pollutant profiling using ICP-MS to leave out Fe, Na, and K at ppm levels.
Batch-to-batch consistency is crucial for high-reliability applications in electronics and aerospace.
3. Thermal and Mechanical Performance in Composites
3.1 Thermal Conductivity and User Interface Engineering
Spherical alumina is primarily utilized as a high-performance filler to improve the thermal conductivity of polymer-based products made use of in electronic product packaging, LED lighting, and power components.
While pure epoxy or silicone has a thermal conductivity of ~ 0.2 W/(m · K), loading with 60– 70 vol% spherical alumina can raise this to 2– 5 W/(m · K), sufficient for effective warmth dissipation in compact devices.
The high intrinsic thermal conductivity of α-alumina, integrated with very little phonon scattering at smooth particle-particle and particle-matrix user interfaces, allows reliable warm transfer through percolation networks.
Interfacial thermal resistance (Kapitza resistance) continues to be a limiting factor, however surface functionalization and maximized dispersion techniques assist minimize this barrier.
In thermal user interface materials (TIMs), round alumina reduces call resistance between heat-generating elements (e.g., CPUs, IGBTs) and heat sinks, preventing getting too hot and extending tool life-span.
Its electric insulation (resistivity > 10 ¹² Ω · cm) ensures security in high-voltage applications, identifying it from conductive fillers like steel or graphite.
3.2 Mechanical Stability and Reliability
Past thermal performance, round alumina enhances the mechanical effectiveness of composites by raising hardness, modulus, and dimensional security.
The round form disperses stress and anxiety consistently, minimizing fracture initiation and propagation under thermal biking or mechanical load.
This is specifically crucial in underfill materials and encapsulants for flip-chip and 3D-packaged tools, where coefficient of thermal development (CTE) inequality can generate delamination.
By readjusting filler loading and bit size distribution (e.g., bimodal blends), the CTE of the composite can be tuned to match that of silicon or published circuit boards, reducing thermo-mechanical stress.
Additionally, the chemical inertness of alumina avoids degradation in moist or harsh settings, making certain long-term integrity in auto, industrial, and exterior electronic devices.
4. Applications and Technological Development
4.1 Electronics and Electric Automobile Systems
Round alumina is a key enabler in the thermal administration of high-power electronics, including insulated gate bipolar transistors (IGBTs), power supplies, and battery management systems in electric cars (EVs).
In EV battery loads, it is included into potting substances and stage modification products to avoid thermal runaway by evenly dispersing warmth throughout cells.
LED makers use it in encapsulants and additional optics to preserve lumen output and color consistency by lowering joint temperature.
In 5G infrastructure and data centers, where warm change thickness are increasing, spherical alumina-filled TIMs guarantee secure procedure of high-frequency chips and laser diodes.
Its duty is broadening into sophisticated packaging innovations such as fan-out wafer-level packaging (FOWLP) and embedded die systems.
4.2 Arising Frontiers and Lasting Development
Future developments concentrate on hybrid filler systems incorporating spherical alumina with boron nitride, aluminum nitride, or graphene to achieve synergistic thermal efficiency while preserving electric insulation.
Nano-spherical alumina (sub-100 nm) is being checked out for transparent porcelains, UV finishings, and biomedical applications, though difficulties in dispersion and expense remain.
Additive manufacturing of thermally conductive polymer composites utilizing spherical alumina enables facility, topology-optimized warmth dissipation structures.
Sustainability initiatives include energy-efficient spheroidization procedures, recycling of off-spec product, and life-cycle evaluation to decrease the carbon footprint of high-performance thermal materials.
In recap, spherical alumina stands for an essential engineered material at the crossway of porcelains, compounds, and thermal scientific research.
Its unique combination of morphology, purity, and efficiency makes it crucial in the continuous miniaturization and power increase of modern electronic and energy systems.
