Every part in a train system have to work well. This maintains the system safe and effective. Railway spreading parts are extremely essential. They provide assistance, attach things, and conduct signals. Their high quality influences exactly how steady the railway network is. When you get these components for South Africa, South America, or Russia, you should discover great makers. To be successful, you require to know the local technical regulations. Here are 5 vital quality standards you must constantly adhere to.
1. Product Make-up & Mechanical Characteristics: The Structure of Top quality
The efficiency of actors iron depends upon its particular chemical make-up and casting process, and must satisfy the international or regional standards of the target market. A reliable railway spreading parts producer will offer complete material traceability.
1.1 Structure Standards: Must adhere to requirements such as International Specifications (ISO), European Criteria (EN), Russian GOST criteria, or those commonly utilized in South America like IRAM (Argentina) and ABNT NBR (Brazil). The content of damaging components like phosphorus and sulfur should be purely managed.
1.2 Mechanical Features: Concentrate on tensile toughness, yield stamina, firmness, and elongation. For ductile iron, refer to criteria such as ISO 1083, EN 1563, or GOST 28394. Procurement should call for providers to give product certifications and mechanical examination reports that abide by the target market’s requirements.

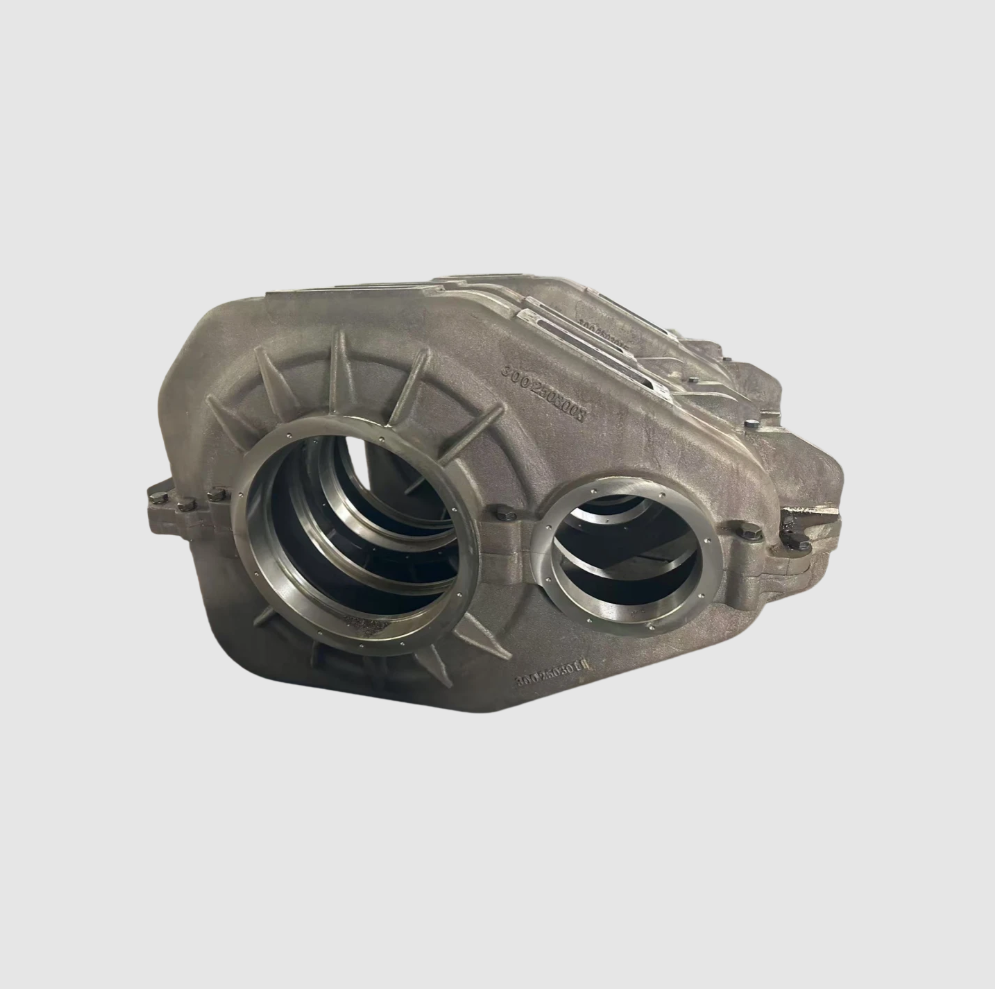

(Railway Cast Iron Gearbox)
2. Dimensional Precision & Tolerance Control: Ensuring a “Perfect Fit”
Railway tasks worldwide have stringent needs for dimensional interchangeability; any type of deviation can affect system combination. Accuracy is a mark of premium train casting manufacturers.
2.1 Crucial Measurements: All interface dimensions and placing hole positions for all train casting elements have to be 100% evaluated.
2.2 Resistance Criteria: Should comply with internationally identified requirements like ISO 2768, or specific tolerance requirements clearly agreed upon with the client. For the Russian and CIS markets, unique attention has to be paid to complying with relevant resistance requirements in GOST 30893.
3. Limitations on Casting Flaws: Getting Rid Of Internal Hidden Dangers
The approval criteria for casting problems need to be clearly defined in contracts and based on globally or regionally recognized specs. Leading railway casting parts producer operations employ strenuous non-destructive screening.
3.1 Surface Issues: Criteria like ISO 8062 can be referenced for analyzing spreading surface area high quality. Cracks, cold shuts, and various other issues impacting service are not permitted.
3.2 Interior Flaws: For crucial load-bearing railway casting elements, non-destructive screening (e.g., ultrasonic, radiographic) need to be done according to standards like ISO 4990, EN 12680, or the GOST R 55724 collection, with clear acceptance degrees for defects.
4. Metallographic Structure & Internal High Quality
The tiny framework of the product is the key basis for evaluating whether its interior quality fulfills the standard. This is an important look for any specialist railway spreading parts producer.
4.1 Ductile Iron: The assessment of nodularization price have to adhere to requirements such as ISO 945-1 or GOST 3443 to ensure its mechanical properties satisfy the demands for use under intricate working conditions.
4.2 Graphite Morphology & Matrix Framework: The metallographic inspection report is an important document for confirming the security of the manufacturing process and need to comply with the pertinent global or regional standards.

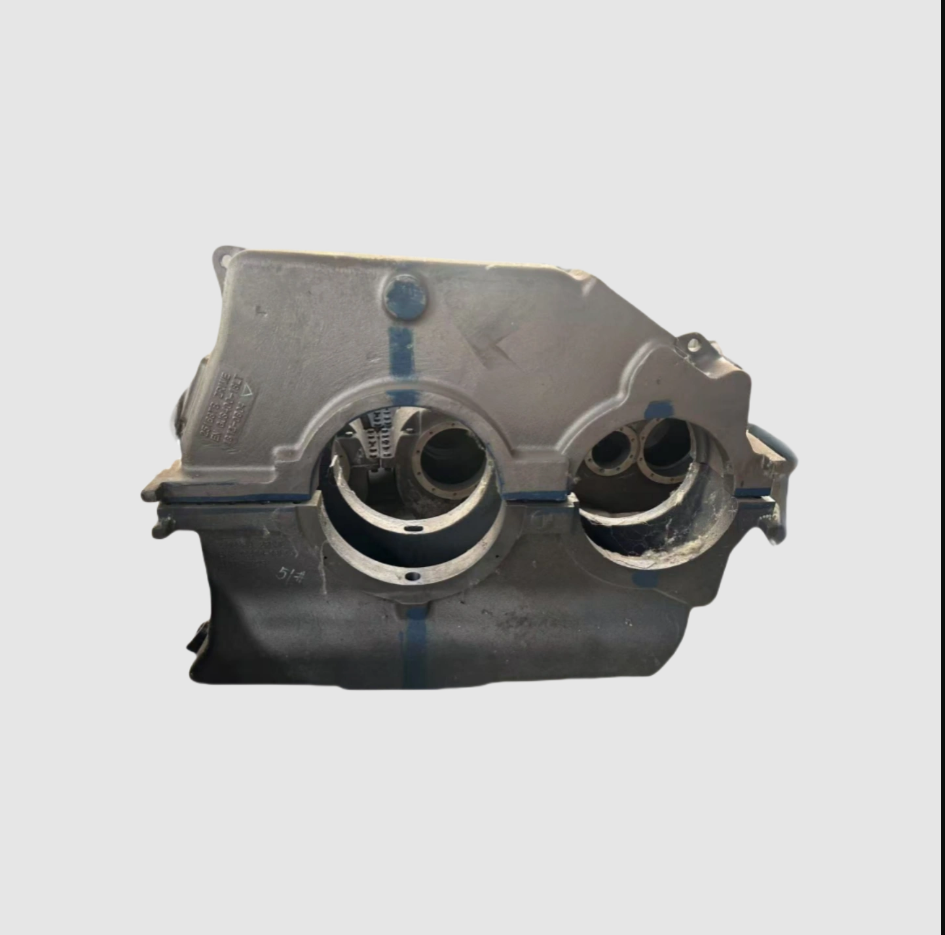

(Railway Cast Iron Gearbox)
5. Anti-Corrosion Treatment & Surface High Quality: Withstanding Harsh Environments
Given South Africa’s coastal high salinity, South America’s exotic rain forest moisture, and Russia’s severe cool and de-icing salts, anti-corrosion therapy for train casting elements is important.
5.1 Treatment Processes: Specify the type of anti-corrosion procedure, such as hot-dip galvanizing (ISO 1461), epoxy covering, and so on, and define crucial indicators like finish thickness, bond ( e.g., ISO 2409), and salt spray resistance ( e.g., ISO 9227).
5.2 Regional Requirements: Need to take notice of specific needs of the target audience, such as Russia’s GOST 9.307 anti-corrosion system certification, or South Africa’s SANS (South African National Standard) requirements. An international railway spreading manufacturers will know with these diverse demands.
