1. Basic Structure and Product Composition
1.1 The Nanoscale Design of Aerogels

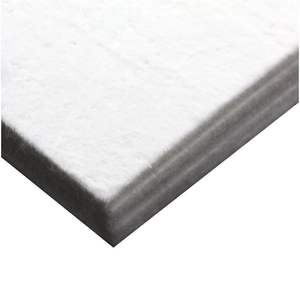

(Aerogel Blanket)
Aerogel blankets are innovative thermal insulation products built on a special nanostructured structure, where a strong silica or polymer network extends an ultra-high porosity volume– usually going beyond 90% air.
This framework originates from the sol-gel procedure, in which a fluid precursor (usually tetramethyl orthosilicate or TMOS) undertakes hydrolysis and polycondensation to develop a wet gel, followed by supercritical or ambient pressure drying out to remove the liquid without collapsing the delicate porous network.
The resulting aerogel includes interconnected nanoparticles (3– 5 nm in size) forming pores on the range of 10– 50 nm, little enough to suppress air molecule activity and therefore minimize conductive and convective warm transfer.
This phenomenon, referred to as Knudsen diffusion, dramatically reduces the reliable thermal conductivity of the product, usually to worths in between 0.012 and 0.018 W/(m · K) at space temperature– amongst the most affordable of any type of solid insulator.
Despite their low thickness (as reduced as 0.003 g/cm THREE), pure aerogels are naturally fragile, demanding support for functional usage in versatile covering type.
1.2 Reinforcement and Compound Style
To conquer delicacy, aerogel powders or monoliths are mechanically integrated into coarse substrates such as glass fiber, polyester, or aramid felts, creating a composite “covering” that retains phenomenal insulation while obtaining mechanical toughness.
The enhancing matrix provides tensile toughness, flexibility, and taking care of toughness, allowing the material to be reduced, curved, and set up in complex geometries without significant performance loss.
Fiber web content generally ranges from 5% to 20% by weight, very carefully stabilized to decrease thermal connecting– where fibers conduct warmth throughout the covering– while guaranteeing architectural integrity.
Some progressed designs integrate hydrophobic surface area therapies (e.g., trimethylsilyl teams) to prevent dampness absorption, which can break down insulation performance and promote microbial growth.
These modifications enable aerogel coverings to keep stable thermal residential properties also in moist settings, increasing their applicability beyond controlled lab conditions.
2. Manufacturing Processes and Scalability

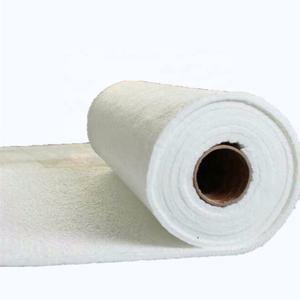

( Aerogel Blanket)
2.1 From Sol-Gel to Roll-to-Roll Production
The manufacturing of aerogel blankets begins with the formation of a damp gel within a fibrous mat, either by impregnating the substratum with a fluid forerunner or by co-forming the gel and fiber network at the same time.
After gelation, the solvent need to be gotten rid of under problems that avoid capillary stress and anxiety from breaking down the nanopores; traditionally, this needed supercritical CO â‚‚ drying out, a costly and energy-intensive process.
Current advances have actually allowed ambient stress drying via surface area alteration and solvent exchange, dramatically reducing manufacturing costs and allowing continual roll-to-roll production.
In this scalable process, long rolls of fiber floor covering are continually covered with forerunner solution, gelled, dried out, and surface-treated, permitting high-volume result appropriate for industrial applications.
This shift has been pivotal in transitioning aerogel blankets from particular niche research laboratory products to readily sensible items made use of in building, power, and transport sectors.
2.2 Quality Assurance and Efficiency Consistency
Guaranteeing consistent pore structure, constant thickness, and reputable thermal efficiency across huge production batches is critical for real-world deployment.
Producers utilize strenuous quality assurance measures, consisting of laser scanning for density variation, infrared thermography for thermal mapping, and gravimetric evaluation for moisture resistance.
Batch-to-batch reproducibility is important, specifically in aerospace and oil & gas sectors, where failing because of insulation break down can have extreme effects.
Additionally, standardized testing according to ASTM C177 (warm circulation meter) or ISO 9288 makes certain accurate coverage of thermal conductivity and enables fair contrast with traditional insulators like mineral woollen or foam.
3. Thermal and Multifunctional Quality
3.1 Superior Insulation Throughout Temperature Level Varies
Aerogel coverings show superior thermal performance not just at ambient temperature levels but additionally across extreme arrays– from cryogenic conditions below -100 ° C to heats exceeding 600 ° C, depending on the base material and fiber type.
At cryogenic temperatures, traditional foams might break or shed performance, whereas aerogel blankets continue to be versatile and maintain reduced thermal conductivity, making them excellent for LNG pipes and storage tanks.
In high-temperature applications, such as commercial heaters or exhaust systems, they offer effective insulation with reduced thickness contrasted to bulkier choices, saving area and weight.
Their reduced emissivity and capacity to mirror radiant heat further enhance efficiency in radiant barrier arrangements.
This broad operational envelope makes aerogel coverings distinctly versatile among thermal administration solutions.
3.2 Acoustic and Fireproof Characteristics
Past thermal insulation, aerogel coverings show notable sound-dampening buildings because of their open, tortuous pore framework that dissipates acoustic energy with thick losses.
They are significantly made use of in automotive and aerospace cabins to lower noise pollution without including substantial mass.
Furthermore, most silica-based aerogel blankets are non-combustible, accomplishing Class A fire ratings, and do not release harmful fumes when subjected to flame– critical for building security and public infrastructure.
Their smoke thickness is incredibly low, enhancing visibility throughout emergency discharges.
4. Applications in Market and Arising Technologies
4.1 Power Efficiency in Structure and Industrial Systems
Aerogel blankets are changing energy efficiency in design and industrial engineering by allowing thinner, higher-performance insulation layers.
In buildings, they are made use of in retrofitting historic frameworks where wall surface thickness can not be boosted, or in high-performance façades and windows to reduce thermal linking.
In oil and gas, they insulate pipes carrying hot fluids or cryogenic LNG, decreasing power loss and avoiding condensation or ice formation.
Their light-weight nature likewise reduces structural lots, especially beneficial in overseas systems and mobile units.
4.2 Aerospace, Automotive, and Consumer Applications
In aerospace, aerogel coverings shield spacecraft from extreme temperature fluctuations during re-entry and guard delicate tools from thermal biking in space.
NASA has actually employed them in Mars rovers and astronaut matches for easy thermal policy.
Automotive producers integrate aerogel insulation into electric lorry battery loads to avoid thermal runaway and boost security and efficiency.
Customer products, consisting of exterior clothing, footwear, and outdoor camping equipment, currently include aerogel linings for superior heat without mass.
As manufacturing prices decline and sustainability improves, aerogel blankets are poised to end up being mainstream solutions in international initiatives to reduce energy intake and carbon exhausts.
Finally, aerogel coverings stand for a merging of nanotechnology and practical design, delivering unrivaled thermal efficiency in a versatile, resilient style.
Their capability to conserve energy, room, and weight while preserving safety and environmental compatibility positions them as key enablers of sustainable modern technology throughout diverse fields.
