1. Material Science and Structural Quality
1.1 Crystal Framework and Chemical Security

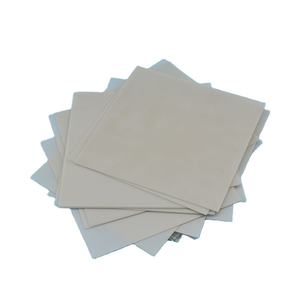

(Aluminum Nitride Ceramic Substrates)
Aluminum nitride (AlN) is a large bandgap semiconductor ceramic with a hexagonal wurtzite crystal framework, composed of alternating layers of light weight aluminum and nitrogen atoms bound through strong covalent interactions.
This durable atomic setup endows AlN with remarkable thermal security, maintaining architectural honesty as much as 2200 ° C in inert environments and withstanding decay under extreme thermal biking.
Unlike alumina (Al ₂ O ₃), AlN is chemically inert to molten metals and several reactive gases, making it ideal for rough settings such as semiconductor handling chambers and high-temperature furnaces.
Its high resistance to oxidation– developing only a slim protective Al â‚‚ O three layer at surface area upon exposure to air– makes sure long-lasting integrity without significant destruction of mass buildings.
Additionally, AlN shows excellent electric insulation with a resistivity exceeding 10 ¹ⴠΩ · cm and a dielectric toughness over 30 kV/mm, vital for high-voltage applications.
1.2 Thermal Conductivity and Digital Features
The most specifying feature of aluminum nitride is its exceptional thermal conductivity, typically ranging from 140 to 180 W/(m · K )for commercial-grade substrates– over five times greater than that of alumina (≈ 30 W/(m · K)).
This performance originates from the low atomic mass of nitrogen and light weight aluminum, combined with solid bonding and minimal factor issues, which permit efficient phonon transport through the lattice.
Nonetheless, oxygen contaminations are specifically damaging; also trace amounts (over 100 ppm) replacement for nitrogen sites, producing aluminum openings and spreading phonons, consequently dramatically minimizing thermal conductivity.
High-purity AlN powders manufactured using carbothermal reduction or direct nitridation are essential to achieve optimal heat dissipation.
Regardless of being an electrical insulator, AlN’s piezoelectric and pyroelectric properties make it useful in sensors and acoustic wave tools, while its vast bandgap (~ 6.2 eV) supports operation in high-power and high-frequency digital systems.
2. Manufacture Procedures and Manufacturing Obstacles

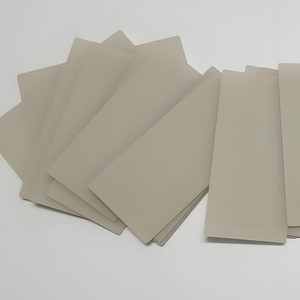

( Aluminum Nitride Ceramic Substrates)
2.1 Powder Synthesis and Sintering Methods
Making high-performance AlN substrates begins with the synthesis of ultra-fine, high-purity powder, commonly achieved with reactions such as Al Two O THREE + 3C + N TWO → 2AlN + 3CO (carbothermal decrease) or straight nitridation of aluminum steel: 2Al + N TWO → 2AlN.
The resulting powder needs to be thoroughly grated and doped with sintering aids like Y ₂ O FOUR, CaO, or rare planet oxides to advertise densification at temperatures in between 1700 ° C and 1900 ° C under nitrogen ambience.
These additives form short-term liquid stages that enhance grain border diffusion, making it possible for complete densification (> 99% theoretical density) while minimizing oxygen contamination.
Post-sintering annealing in carbon-rich atmospheres can even more minimize oxygen material by getting rid of intergranular oxides, thereby restoring peak thermal conductivity.
Attaining uniform microstructure with regulated grain size is vital to balance mechanical strength, thermal efficiency, and manufacturability.
2.2 Substrate Shaping and Metallization
When sintered, AlN porcelains are precision-ground and lapped to meet limited dimensional tolerances needed for electronic packaging, frequently to micrometer-level flatness.
Through-hole drilling, laser cutting, and surface pattern allow combination into multilayer packages and hybrid circuits.
A critical action in substrate manufacture is metallization– the application of conductive layers (normally tungsten, molybdenum, or copper) using procedures such as thick-film printing, thin-film sputtering, or direct bonding of copper (DBC).
For DBC, copper aluminum foils are bound to AlN surface areas at elevated temperature levels in a regulated ambience, forming a solid user interface appropriate for high-current applications.
Alternative methods like active metal brazing (AMB) utilize titanium-containing solders to improve bond and thermal fatigue resistance, particularly under repeated power cycling.
Proper interfacial design makes sure low thermal resistance and high mechanical dependability in running gadgets.
3. Efficiency Advantages in Electronic Solution
3.1 Thermal Administration in Power Electronics
AlN substratums master handling heat generated by high-power semiconductor gadgets such as IGBTs, MOSFETs, and RF amplifiers made use of in electric automobiles, renewable energy inverters, and telecoms facilities.
Efficient heat removal avoids local hotspots, reduces thermal stress and anxiety, and prolongs device life time by alleviating electromigration and delamination risks.
Compared to conventional Al â‚‚ O three substratums, AlN makes it possible for smaller sized package sizes and greater power thickness as a result of its superior thermal conductivity, permitting developers to push performance limits without jeopardizing reliability.
In LED illumination and laser diodes, where joint temperature directly impacts effectiveness and shade security, AlN substrates significantly improve luminous output and operational life-span.
Its coefficient of thermal growth (CTE ≈ 4.5 ppm/K) additionally carefully matches that of silicon (3.5– 4 ppm/K) and gallium nitride (GaN, ~ 5.6 ppm/K), decreasing thermo-mechanical stress throughout thermal biking.
3.2 Electrical and Mechanical Dependability
Past thermal efficiency, AlN uses reduced dielectric loss (tan δ < 0.0005) and steady permittivity (εᵣ ≈ 8.9) throughout a wide frequency range, making it perfect for high-frequency microwave and millimeter-wave circuits.
Its hermetic nature stops wetness access, removing corrosion dangers in humid atmospheres– an essential benefit over natural substrates.
Mechanically, AlN has high flexural toughness (300– 400 MPa) and firmness (HV ≈ 1200), making sure sturdiness throughout handling, assembly, and field procedure.
These qualities jointly add to enhanced system reliability, lowered failure prices, and reduced total price of possession in mission-critical applications.
4. Applications and Future Technological Frontiers
4.1 Industrial, Automotive, and Protection Systems
AlN ceramic substratums are now basic in advanced power components for commercial motor drives, wind and solar inverters, and onboard chargers in electrical and hybrid automobiles.
In aerospace and defense, they support radar systems, electronic war units, and satellite interactions, where efficiency under severe problems is non-negotiable.
Medical imaging devices, including X-ray generators and MRI systems, likewise gain from AlN’s radiation resistance and signal stability.
As electrification fads increase throughout transportation and power fields, need for AlN substratums remains to expand, driven by the requirement for portable, reliable, and trusted power electronic devices.
4.2 Emerging Integration and Lasting Growth
Future developments focus on incorporating AlN into three-dimensional packaging styles, ingrained passive parts, and heterogeneous assimilation platforms integrating Si, SiC, and GaN tools.
Research study right into nanostructured AlN films and single-crystal substrates aims to additional boost thermal conductivity toward theoretical restrictions (> 300 W/(m · K)) for next-generation quantum and optoelectronic tools.
Initiatives to decrease manufacturing costs via scalable powder synthesis, additive production of complicated ceramic structures, and recycling of scrap AlN are acquiring momentum to enhance sustainability.
Additionally, modeling tools using finite aspect analysis (FEA) and machine learning are being utilized to maximize substrate design for specific thermal and electrical loads.
To conclude, aluminum nitride ceramic substratums stand for a foundation modern technology in modern electronic devices, distinctly linking the space between electrical insulation and outstanding thermal transmission.
Their duty in making it possible for high-efficiency, high-reliability power systems underscores their calculated importance in the continuous evolution of electronic and energy modern technologies.
