Introduction to Aluminum Nitride Ceramics
Aluminum nitride (AlN) is a high-performance ceramic product that has actually obtained extensive recognition for its exceptional thermal conductivity, electric insulation, and mechanical stability at elevated temperatures. With a hexagonal wurtzite crystal framework, AlN displays a distinct mix of homes that make it one of the most ideal substrate material for applications in electronics, optoelectronics, power modules, and high-temperature settings. Its capability to efficiently dissipate warmth while keeping excellent dielectric stamina placements AlN as a premium choice to typical ceramic substratums such as alumina and beryllium oxide. This write-up explores the basic attributes of aluminum nitride ceramics, looks into manufacture strategies, and highlights its important roles throughout innovative technological domain names.

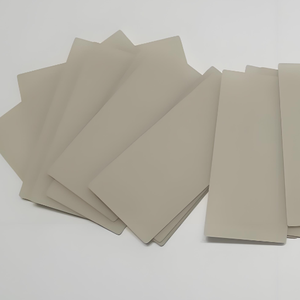

(Aluminum Nitride Ceramics)
Crystal Framework and Essential Quality
The efficiency of aluminum nitride as a substratum product is greatly dictated by its crystalline framework and innate physical residential properties. AlN takes on a wurtzite-type lattice composed of rotating light weight aluminum and nitrogen atoms, which adds to its high thermal conductivity– commonly surpassing 180 W/(m · K), with some high-purity examples accomplishing over 320 W/(m · K). This worth significantly surpasses those of various other extensively used ceramic materials, including alumina (~ 24 W/(m · K) )and silicon carbide (~ 90 W/(m · K)).
In addition to its thermal performance, AlN has a vast bandgap of about 6.2 eV, resulting in superb electrical insulation residential or commercial properties even at high temperatures. It additionally shows low thermal growth (CTE ≈ 4.5 × 10 â»â¶/ K), which carefully matches that of silicon and gallium arsenide, making it an optimum match for semiconductor device product packaging. Additionally, AlN exhibits high chemical inertness and resistance to thaw metals, boosting its suitability for extreme settings. These consolidated qualities develop AlN as a prominent candidate for high-power electronic substratums and thermally handled systems.
Manufacture and Sintering Technologies
Producing top notch light weight aluminum nitride porcelains calls for exact powder synthesis and sintering methods to attain thick microstructures with very little pollutants. As a result of its covalent bonding nature, AlN does not quickly densify with standard pressureless sintering. For that reason, sintering help such as yttrium oxide (Y â‚‚ O FOUR), calcium oxide (CaO), or uncommon earth components are commonly contributed to advertise liquid-phase sintering and enhance grain limit diffusion.
The construction procedure usually begins with the carbothermal reduction of aluminum oxide in a nitrogen ambience to manufacture AlN powders. These powders are then milled, formed by means of methods like tape casting or shot molding, and sintered at temperatures between 1700 ° C and 1900 ° C under a nitrogen-rich ambience. Hot pressing or stimulate plasma sintering (SPS) can additionally improve density and thermal conductivity by reducing porosity and advertising grain positioning. Advanced additive production strategies are additionally being discovered to produce complex-shaped AlN components with tailored thermal administration capacities.
Application in Electronic Product Packaging and Power Modules
Among the most prominent uses light weight aluminum nitride ceramics is in electronic packaging, specifically for high-power tools such as insulated gateway bipolar transistors (IGBTs), laser diodes, and radio frequency (RF) amplifiers. As power densities increase in modern-day electronic devices, effective warm dissipation becomes important to make certain integrity and durability. AlN substratums supply an ideal service by incorporating high thermal conductivity with excellent electrical isolation, preventing short circuits and thermal runaway problems.
In addition, AlN-based straight bound copper (DBC) and active steel brazed (AMB) substratums are significantly utilized in power module styles for electrical vehicles, renewable resource inverters, and industrial electric motor drives. Compared to conventional alumina or silicon nitride substrates, AlN supplies quicker heat transfer and better compatibility with silicon chip coefficients of thermal growth, thus lowering mechanical anxiety and improving overall system performance. Ongoing research aims to boost the bonding stamina and metallization methods on AlN surfaces to further increase its application range.
Usage in Optoelectronic and High-Temperature Instruments
Past digital packaging, light weight aluminum nitride ceramics play a vital duty in optoelectronic and high-temperature applications due to their transparency to ultraviolet (UV) radiation and thermal security. AlN is commonly used as a substrate for deep UV light-emitting diodes (LEDs) and laser diodes, particularly in applications requiring sanitation, noticing, and optical communication. Its vast bandgap and low absorption coefficient in the UV array make it a perfect prospect for sustaining aluminum gallium nitride (AlGaN)-based heterostructures.
Additionally, AlN’s capability to work accurately at temperature levels surpassing 1000 ° C makes it ideal for use in sensing units, thermoelectric generators, and parts revealed to severe thermal tons. In aerospace and defense markets, AlN-based sensing unit bundles are employed in jet engine tracking systems and high-temperature control systems where conventional products would stop working. Continuous advancements in thin-film deposition and epitaxial growth strategies are expanding the potential of AlN in next-generation optoelectronic and high-temperature integrated systems.
( Aluminum Nitride Ceramics)
Environmental Stability and Long-Term Reliability
A vital factor to consider for any substrate product is its long-term integrity under operational stress and anxieties. Light weight aluminum nitride shows superior ecological security compared to numerous various other porcelains. It is extremely immune to corrosion from acids, alkalis, and molten metals, making sure longevity in hostile chemical settings. Nonetheless, AlN is prone to hydrolysis when exposed to wetness at raised temperatures, which can degrade its surface and decrease thermal performance.
To mitigate this issue, safety coatings such as silicon nitride (Si two N â‚„), light weight aluminum oxide, or polymer-based encapsulation layers are commonly related to boost moisture resistance. Additionally, careful securing and product packaging approaches are applied throughout device setting up to preserve the integrity of AlN substrates throughout their life span. As environmental policies become more rigid, the non-toxic nature of AlN likewise places it as a preferred alternative to beryllium oxide, which postures health risks during processing and disposal.
Conclusion
Aluminum nitride ceramics stand for a course of sophisticated products uniquely matched to resolve the growing demands for efficient thermal management and electric insulation in high-performance electronic and optoelectronic systems. Their remarkable thermal conductivity, chemical stability, and compatibility with semiconductor modern technologies make them one of the most suitable substrate product for a vast array of applications– from auto power components to deep UV LEDs and high-temperature sensing units. As construction modern technologies remain to evolve and cost-effective manufacturing methods mature, the fostering of AlN substratums is expected to climb dramatically, driving development in next-generation electronic and photonic devices.
