1. Intro to Oil Immersed Transformers
In the detailed web of our contemporary electric grid, transformers play an important role, calmly stepping voltage up and down to guarantee electrical energy can be transferred effectively over fars away and distributed safely to our homes and sectors. Amongst the various types readily available, the oil immersed transformer stands as a testimony to tested reliability and durability. For years, these workhorses have created the foundation of power systems worldwide.
An oil submersed transformer is a sort of electrical transformer that uses a specialized shielding oil as both a coolant and a shielding medium. This design is mostly used for medium to high-power applications, making it a keystone of electric framework. This guide digs deep right into the world of oil immersed power transformers and oil submersed distribution transformers, exploring their innovation, applications, and their advancing function in a period of digitalization and renewable energy.
1.1 What is an Oil Submersed Transformer?
At its core, an oil immersed transformer consists of a magnetic core and copper or aluminum windings housed inside a sealed storage tank filled with insulating oil. The key function of the oil is twofold:
1. Insulation: The oil possesses high dielectric strength, effectively insulating the high-voltage windings from the transformer’s core and based tank. This avoids brief circuits and electrical break downs.
2. Air conditioning: As the transformer operates, the windings produce substantial heat because of I ² R losses. The flowing oil absorbs this warm, convects it to the transformer’s storage tank wall surfaces, and dissipates it right into the surrounding air. Bigger units often include radiators or fins to enhance the area for a lot more efficient cooling.
This dual-purpose use of oil makes the oil immersed transformer incredibly efficient and durable, with the ability of handling high lots and enduring transient overloads much better than many dry-type alternatives.
1.2 Oil Immersed Power Transformer vs. Oil Immersed Distribution Transformer
While all these systems are oil immersed transformers, they offer distinct features within the power system network. Recognizing the distinction is important.
An oil submersed power transformer is a heavyweight, commonly utilized in transmission networks at creating terminals and significant substations. Their main function is to “step-up” the voltage produced at the power plant to incredibly high degrees (e.g., 138 kV, 230 kV, 500 kV and above) for efficient long-distance transmission, and to “step-down” the voltage at receiving substations for more circulation. They are defined by their extremely high power scores (often exceeding 100 MVA), complicated building, and on-load tap changers for voltage law.
An oil involved circulation transformer, on the various other hand, does the final action in the power delivery chain. It takes the tool voltage from the transmission lines (e.g., 11 kV, 33 kV) and steps it down to the reduced voltages (e.g., 400/230 V) utilized by commercial and household consumers. You typically find them on energy posts (pole-mounted) or on ground-level pads (pad-mounted). They are smaller sized, have reduced power rankings (usually up to 2,500 kVA), and are developed for optimal effectiveness at lower, more consistent lots.

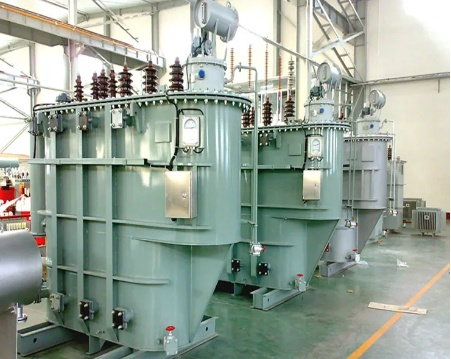

(Oil immersed power transformer)
2. Secret Advantages of Oil Submersed Transformers
The enduring appeal of the oil immersed transformer is not unexpected. It uses a suite of compelling advantages that make it the preferred option for lots of demanding applications.
2.1 Superior Air Conditioning and Overload Capacity
The premium thermal capacity of oil contrasted to air permits an oil immersed power transformer to handle and dissipate warm a lot more effectively. This equates to a greater overload capacity. During durations of height power demand, an oil immersed transformer can deal with short-lived overloads without suffering damages, an essential attribute for maintaining grid security. The oil’s flow makes sure also warmth circulation, preventing localized locations that can break down insulation with time.
2.2 Enhanced Insulation and Long Life Span
The combination of top quality mineral oil and carefully fertilized paper insulation produces a dielectric system of remarkable strength. This robust insulation system shields the transformer from voltage rises and transients, contributing to an operational life expectancy that can extend to 30-40 years or even more with proper upkeep. The secured tank additionally shields the interior components from dampness, dust, and various other climatic pollutants.
2.3 High Efficiency and Cost-Effectiveness
For high-power applications, the oil submersed transformer is usually the most affordable selection. The products utilized– mineral oil, steel storage tank, and copper/aluminum windings– supply a positive equilibrium of efficiency and cost. The high performance of these transformers, specifically at their rated lots, results in lower energy losses over their life time, bring about considerable cost financial savings for energy business and large industrial customers.
3. Warm Topics and Future Trends
The world of oil immersed transformers is not static. It is continually evolving to satisfy brand-new difficulties and integrate with modern innovations.
3.1 Biodegradable and Fire-Resistant Oils
Environmental and safety and security issues are driving a considerable change away from conventional mineral oil. The marketplace is rapidly embracing oil submersed transformers loaded with naturally degradable esters (artificial or natural). These oils provide a higher fire point (making them K-class fireproof), are less toxic, and are easily eco-friendly, substantially lowering the environmental effect in situation of a leakage. This fad is making oil submersed circulation transformers much safer for installment in metropolitan areas and eco delicate places.
3.2 Assimilation with Smart Grids and IoT
The modern-day oil immersed power transformer is ending up being a smart node in the wise grid. Sensing units are being incorporated to monitor crucial specifications in real-time, including:
Dissolved Gas Evaluation (DGA): Spotting mistake gases created within the oil to forecast incipient mistakes.
Temperature Surveillance: Tracking top-oil and hotspot temperatures.
Tons and Power Quality Surveillance.
This data, transferred by means of IoT (Net of Things) platforms, enables predictive upkeep, protects against unexpected blackouts, and maximizes transformer utilization and life expectancy.
3.3 Supporting the Renewable Energy Shift
The global promote renewables is creating brand-new demand for oil immersed transformers. Large-scale solar ranches and wind power installations require durable oil submersed power transformers to step up the created voltage to transmission levels. Furthermore, the periodic nature of renewables locations higher tension on grid components, and the tested integrity and overload ability of oil immersed transformers make them ideal for this critical role.
4. Selection and Maintenance Ideal Practices
Choosing the best transformer and keeping it appropriately is crucial to a reliable power system.
4.1 How to Select the Right Oil Immersed Transformer
Choosing in between an oil immersed power transformer and an oil immersed distribution transformer relies on the application. Trick factors to consider include:
1. Voltage Degree and kVA Ranking: Suit the transformer’s specs to your system’s demands.
2. Application: Transmission substation, plant, or business distribution.
3. Area: Indoor vs. outdoor, environmental conditions, and fire security policies (which may influence the option of insulating oil).
4. Efficiency Requirements: Comply with regional efficiency requirements like DOE (United States) or EU CoC (Europe).
5. Budget plan: Take into consideration both the first funding expense and the total price of ownership, including losses.

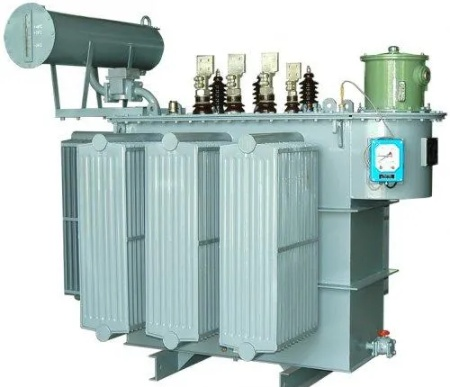

(Oil immersed distribution transformer)
4.2 Vital Upkeep for Durability
Aggressive upkeep is vital for any type of oil immersed transformer. A comprehensive program should consist of:
1. Normal Oil Sampling and Testing: Regular DGA and testing of dielectric toughness and wetness web content are the most effective ways to analyze the health and wellness of the transformer.
2. Bushing and Insulation Inspection: Aesthetic checks for fractures, contamination, or leaks.
3. Tap Changer Maintenance: Routine assessment and maintenance of on-load or off-load faucet changers.
4. Maintain it Tidy and Dry: Guaranteeing the container exterior, radiators, and rests are tidy and practical.
The oil submersed transformer, in its roles as both a high-capacity oil immersed power transformer and a common oil submersed circulation transformer, remains an irreplaceable element of our worldwide energy facilities. Its tested design, paired with ongoing advancements in insulating fluids and electronic tracking, ensures it will continue to be a trustworthy, reliable, and intelligent solution for powering our globe for decades to find. As we build the grids of the future, incorporating more renewables and electronic intelligence, the robust and adaptable oil submersed transformer will unquestionably go to the heart of it.
