Every component in a railway system need to work well. This maintains the system risk-free and effective. Train spreading parts are very essential. They provide assistance, connect things, and conduct signals. Their high quality influences just how steady the train network is. When you acquire these parts for South Africa, South America, or Russia, you must find great manufacturers. To be successful, you require to recognize the regional technical guidelines. Right here are 5 crucial top quality standards you must always follow.
1. Material Structure & Mechanical Qualities: The Structure of High quality
The efficiency of actors iron depends on its particular chemical make-up and casting process, and need to fulfill the global or local requirements of the target market. A trusted railway spreading components producer will certainly supply full product traceability.
1.1 Make-up Standards: Should follow standards such as International Standards (ISO), European Requirement (EN), Russian GOST requirements, or those frequently made use of in South America like IRAM (Argentina) and ABNT NBR (Brazil). The web content of unsafe components like phosphorus and sulfur need to be strictly controlled.
1.2 Mechanical Features: Focus on tensile stamina, return stamina, hardness, and elongation. For pliable iron, refer to standards such as ISO 1083, EN 1563, or GOST 28394. Purchase needs to call for providers to provide material certificates and mechanical examination reports that abide by the target market’s needs.

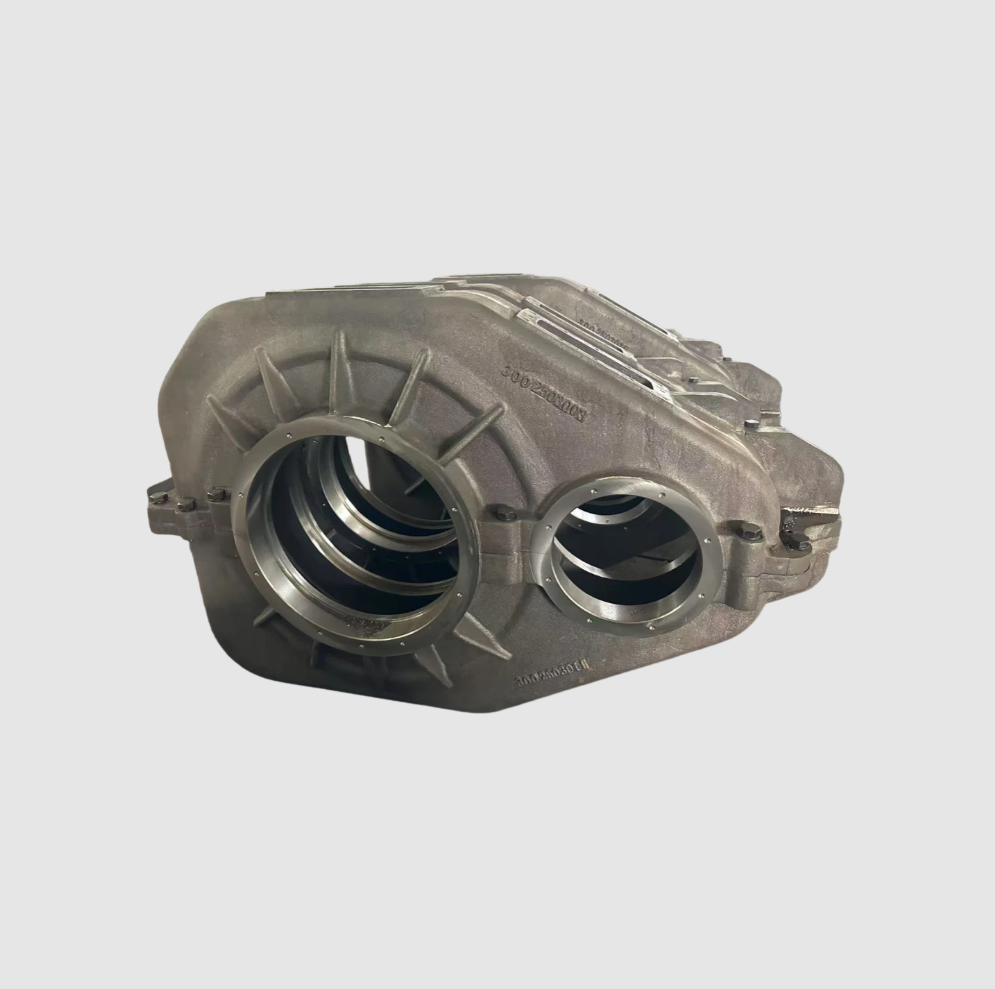

(Railway Cast Iron Gearbox)
2. Dimensional Precision & Tolerance Control: Making Certain a “Perfect Fit”
Train jobs worldwide have rigorous needs for dimensional interchangeability; any variance can impact system combination. Precision is a mark of exceptional train casting producers.
2.1 Critical Dimensions: All user interface measurements and mounting opening settings for all train spreading components should be 100% examined.
2.2 Tolerance Requirements: Should follow internationally acknowledged criteria like ISO 2768, or particular resistance requirements clearly agreed upon with the customer. For the Russian and CIS markets, special interest has to be paid to following relevant resistance specs in GOST 30893.
3. Limits on Casting Defects: Eliminating Inner Hidden Dangers
The approval standards for casting defects should be clearly defined in agreements and based on internationally or regionally acknowledged specs. Leading railway spreading components manufacturer procedures use extensive non-destructive screening.
3.1 Surface Flaws: Requirements like ISO 8062 can be referenced for examining casting surface quality. Fractures, cold shuts, and other problems influencing use are not permitted.
3.2 Inner Issues: For vital load-bearing train spreading elements, non-destructive screening (e.g., ultrasonic, radiographic) must be done according to requirements like ISO 4990, EN 12680, or the GOST R 55724 series, with clear approval levels for problems.
4. Metallographic Structure & Internal High Quality
The microscopic structure of the material is the essential basis for judging whether its inner top quality meets the requirement. This is a vital check for any specialist railway casting components maker.
4.1 Ductile Iron: The evaluation of nodularization price have to adhere to requirements such as ISO 945-1 or GOST 3443 to ensure its mechanical buildings satisfy the demands for use under intricate working conditions.
4.2 Graphite Morphology & Matrix Framework: The metallographic assessment record is an essential record for confirming the stability of the production process and need to follow the relevant worldwide or regional requirements.

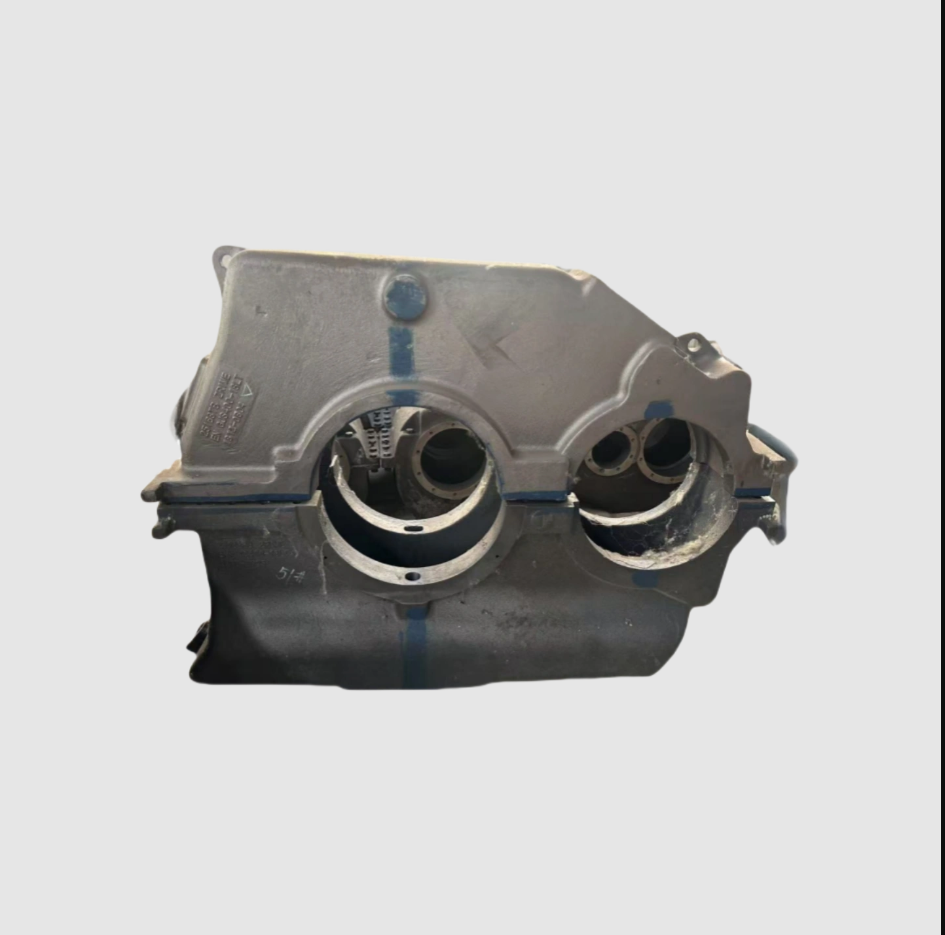

(Railway Cast Iron Gearbox)
5. Anti-Corrosion Therapy & Surface Area Top Quality: Withstanding Harsh Environments
Provided South Africa’s seaside high salinity, South America’s tropical rain forest humidity, and Russia’s extreme cold and de-icing salts, anti-corrosion treatment for train casting elements is vital.
5.1 Therapy Procedures: Specify the sort of anti-corrosion procedure, such as hot-dip galvanizing (ISO 1461), epoxy coating, and so on, and specify crucial signs like covering density, bond ( e.g., ISO 2409), and salt spray resistance ( e.g., ISO 9227).
5.2 Regional Specifications: Must take notice of certain requirements of the target market, such as Russia’s GOST 9.307 anti-corrosion system certification, or South Africa’s SANS (South African National Criterion) criteria. An international train spreading manufacturers will certainly know with these varied demands.
