1. Product Fundamentals and Architectural Features of Alumina Ceramics
1.1 Crystallographic and Compositional Basis of α-Alumina

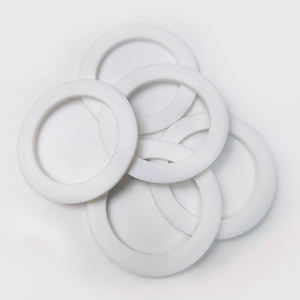

(Alumina Ceramic Substrates)
Alumina ceramic substrates, largely made up of light weight aluminum oxide (Al two O TWO), act as the foundation of contemporary digital product packaging because of their extraordinary equilibrium of electric insulation, thermal security, mechanical strength, and manufacturability.
The most thermodynamically stable stage of alumina at high temperatures is diamond, or α-Al Two O ₃, which crystallizes in a hexagonal close-packed oxygen lattice with aluminum ions occupying two-thirds of the octahedral interstitial sites.
This thick atomic setup imparts high firmness (Mohs 9), excellent wear resistance, and solid chemical inertness, making α-alumina suitable for extreme operating settings.
Commercial substratums normally consist of 90– 99.8% Al â‚‚ O FIVE, with minor enhancements of silica (SiO TWO), magnesia (MgO), or unusual earth oxides utilized as sintering aids to advertise densification and control grain development during high-temperature processing.
Higher pureness grades (e.g., 99.5% and over) show superior electrical resistivity and thermal conductivity, while lower purity variations (90– 96%) use affordable remedies for less demanding applications.
1.2 Microstructure and Flaw Engineering for Electronic Reliability
The efficiency of alumina substrates in electronic systems is seriously based on microstructural uniformity and problem minimization.
A fine, equiaxed grain structure– normally ranging from 1 to 10 micrometers– guarantees mechanical honesty and reduces the likelihood of fracture propagation under thermal or mechanical tension.
Porosity, particularly interconnected or surface-connected pores, must be decreased as it breaks down both mechanical strength and dielectric efficiency.
Advanced handling strategies such as tape casting, isostatic pushing, and regulated sintering in air or managed ambiences make it possible for the production of substratums with near-theoretical thickness (> 99.5%) and surface roughness below 0.5 µm, vital for thin-film metallization and cord bonding.
Furthermore, contamination segregation at grain borders can cause leakage currents or electrochemical movement under predisposition, demanding stringent control over resources purity and sintering conditions to make certain long-term reliability in damp or high-voltage settings.
2. Production Processes and Substratum Fabrication Technologies

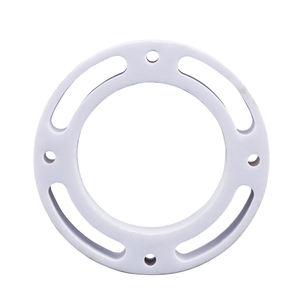

( Alumina Ceramic Substrates)
2.1 Tape Spreading and Eco-friendly Body Processing
The manufacturing of alumina ceramic substratums begins with the prep work of an extremely distributed slurry including submicron Al two O six powder, organic binders, plasticizers, dispersants, and solvents.
This slurry is processed by means of tape casting– a constant approach where the suspension is topped a relocating service provider film making use of an accuracy medical professional blade to accomplish uniform density, commonly in between 0.1 mm and 1.0 mm.
After solvent dissipation, the resulting “environment-friendly tape” is adaptable and can be punched, drilled, or laser-cut to develop through openings for vertical interconnections.
Numerous layers might be laminated to create multilayer substrates for complex circuit assimilation, although most of commercial applications make use of single-layer configurations because of cost and thermal development considerations.
The green tapes are after that very carefully debound to get rid of organic additives via regulated thermal disintegration prior to final sintering.
2.2 Sintering and Metallization for Circuit Integration
Sintering is conducted in air at temperatures between 1550 ° C and 1650 ° C, where solid-state diffusion drives pore elimination and grain coarsening to accomplish full densification.
The straight shrinking during sintering– usually 15– 20%– need to be specifically predicted and compensated for in the layout of eco-friendly tapes to guarantee dimensional accuracy of the final substrate.
Following sintering, metallization is related to create conductive traces, pads, and vias.
Two key methods dominate: thick-film printing and thin-film deposition.
In thick-film technology, pastes containing steel powders (e.g., tungsten, molybdenum, or silver-palladium alloys) are screen-printed onto the substrate and co-fired in a decreasing atmosphere to form durable, high-adhesion conductors.
For high-density or high-frequency applications, thin-film procedures such as sputtering or evaporation are utilized to down payment adhesion layers (e.g., titanium or chromium) complied with by copper or gold, allowing sub-micron pattern through photolithography.
Vias are filled with conductive pastes and discharged to develop electrical affiliations in between layers in multilayer styles.
3. Practical Properties and Performance Metrics in Electronic Solution
3.1 Thermal and Electric Habits Under Operational Stress And Anxiety
Alumina substrates are prized for their beneficial mix of modest thermal conductivity (20– 35 W/m · K for 96– 99.8% Al â‚‚ O SIX), which allows reliable warmth dissipation from power tools, and high volume resistivity (> 10 ¹ⴠΩ · cm), guaranteeing minimal leakage current.
Their dielectric continuous (εᵣ ≈ 9– 10 at 1 MHz) is secure over a large temperature level and regularity variety, making them suitable for high-frequency circuits as much as several gigahertz, although lower-κ materials like aluminum nitride are liked for mm-wave applications.
The coefficient of thermal development (CTE) of alumina (~ 6.8– 7.2 ppm/K) is fairly well-matched to that of silicon (~ 3 ppm/K) and specific packaging alloys, reducing thermo-mechanical stress throughout device procedure and thermal cycling.
Nevertheless, the CTE mismatch with silicon continues to be a concern in flip-chip and straight die-attach arrangements, frequently calling for compliant interposers or underfill materials to reduce exhaustion failing.
3.2 Mechanical Robustness and Environmental Sturdiness
Mechanically, alumina substrates exhibit high flexural toughness (300– 400 MPa) and excellent dimensional security under lots, enabling their usage in ruggedized electronic devices for aerospace, auto, and commercial control systems.
They are resistant to vibration, shock, and creep at raised temperatures, maintaining structural honesty up to 1500 ° C in inert ambiences.
In moist atmospheres, high-purity alumina shows very little wetness absorption and exceptional resistance to ion movement, ensuring long-lasting reliability in exterior and high-humidity applications.
Surface solidity also protects against mechanical damage during handling and setting up, although treatment must be required to avoid edge chipping as a result of integral brittleness.
4. Industrial Applications and Technological Effect Across Sectors
4.1 Power Electronic Devices, RF Modules, and Automotive Solutions
Alumina ceramic substrates are common in power digital modules, consisting of shielded entrance bipolar transistors (IGBTs), MOSFETs, and rectifiers, where they offer electrical isolation while helping with warmth transfer to heat sinks.
In radio frequency (RF) and microwave circuits, they serve as carrier platforms for hybrid incorporated circuits (HICs), surface area acoustic wave (SAW) filters, and antenna feed networks because of their steady dielectric buildings and low loss tangent.
In the automobile market, alumina substratums are made use of in engine control units (ECUs), sensor packages, and electrical vehicle (EV) power converters, where they withstand heats, thermal biking, and direct exposure to harsh liquids.
Their reliability under severe problems makes them important for safety-critical systems such as anti-lock braking (ABDOMINAL MUSCLE) and progressed driver support systems (ADAS).
4.2 Clinical Devices, Aerospace, and Arising Micro-Electro-Mechanical Systems
Past consumer and commercial electronic devices, alumina substrates are utilized in implantable medical gadgets such as pacemakers and neurostimulators, where hermetic sealing and biocompatibility are critical.
In aerospace and defense, they are made use of in avionics, radar systems, and satellite communication modules due to their radiation resistance and stability in vacuum environments.
Moreover, alumina is progressively used as an architectural and protecting system in micro-electro-mechanical systems (MEMS), consisting of stress sensors, accelerometers, and microfluidic tools, where its chemical inertness and compatibility with thin-film handling are useful.
As electronic systems continue to require higher power thickness, miniaturization, and dependability under extreme problems, alumina ceramic substrates remain a foundation material, linking the void in between efficiency, cost, and manufacturability in sophisticated electronic packaging.
