1. Essential Make-up and Structural Attributes of Quartz Ceramics
1.1 Chemical Pureness and Crystalline-to-Amorphous Shift

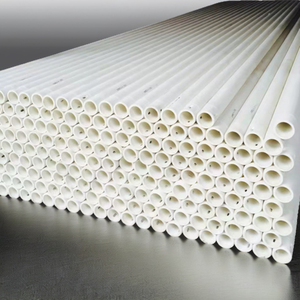

(Quartz Ceramics)
Quartz ceramics, likewise called integrated silica or integrated quartz, are a course of high-performance inorganic products originated from silicon dioxide (SiO â‚‚) in its ultra-pure, non-crystalline (amorphous) kind.
Unlike traditional porcelains that rely on polycrystalline frameworks, quartz porcelains are identified by their total lack of grain borders due to their glazed, isotropic network of SiO â‚„ tetrahedra interconnected in a three-dimensional random network.
This amorphous structure is achieved via high-temperature melting of all-natural quartz crystals or artificial silica forerunners, complied with by rapid air conditioning to stop condensation.
The resulting product includes generally over 99.9% SiO TWO, with trace contaminations such as alkali steels (Na âş, K âş), light weight aluminum, and iron maintained parts-per-million degrees to preserve optical quality, electric resistivity, and thermal efficiency.
The lack of long-range order eliminates anisotropic habits, making quartz ceramics dimensionally secure and mechanically consistent in all directions– a critical advantage in accuracy applications.
1.2 Thermal Habits and Resistance to Thermal Shock
Among one of the most specifying features of quartz porcelains is their remarkably reduced coefficient of thermal growth (CTE), usually around 0.55 Ă— 10 â»â¶/ K between 20 ° C and 300 ° C.
This near-zero growth develops from the flexible Si– O– Si bond angles in the amorphous network, which can change under thermal stress and anxiety without breaking, enabling the material to hold up against fast temperature level modifications that would certainly fracture conventional ceramics or steels.
Quartz ceramics can endure thermal shocks surpassing 1000 ° C, such as direct immersion in water after warming to heated temperatures, without splitting or spalling.
This residential property makes them vital in environments including duplicated home heating and cooling cycles, such as semiconductor handling heating systems, aerospace parts, and high-intensity lighting systems.
Additionally, quartz ceramics maintain structural stability up to temperatures of roughly 1100 ° C in continuous service, with temporary direct exposure tolerance approaching 1600 ° C in inert environments.
( Quartz Ceramics)
Past thermal shock resistance, they exhibit high softening temperature levels (~ 1600 ° C )and superb resistance to devitrification– though extended direct exposure over 1200 ° C can initiate surface area condensation right into cristobalite, which might compromise mechanical stamina as a result of volume changes during phase shifts.
2. Optical, Electric, and Chemical Characteristics of Fused Silica Solution
2.1 Broadband Transparency and Photonic Applications
Quartz porcelains are renowned for their extraordinary optical transmission across a large spooky variety, prolonging from the deep ultraviolet (UV) at ~ 180 nm to the near-infrared (IR) at ~ 2500 nm.
This openness is enabled by the lack of contaminations and the homogeneity of the amorphous network, which decreases light scattering and absorption.
High-purity artificial integrated silica, produced using flame hydrolysis of silicon chlorides, accomplishes even higher UV transmission and is utilized in crucial applications such as excimer laser optics, photolithography lenses, and space-based telescopes.
The material’s high laser damages limit– standing up to malfunction under intense pulsed laser irradiation– makes it optimal for high-energy laser systems utilized in blend research study and commercial machining.
Furthermore, its low autofluorescence and radiation resistance ensure dependability in clinical instrumentation, consisting of spectrometers, UV treating systems, and nuclear surveillance gadgets.
2.2 Dielectric Efficiency and Chemical Inertness
From an electric point ofview, quartz porcelains are superior insulators with volume resistivity exceeding 10 ¹⸠Ω · cm at room temperature level and a dielectric constant of roughly 3.8 at 1 MHz.
Their reduced dielectric loss tangent (tan δ < 0.0001) makes certain minimal power dissipation in high-frequency and high-voltage applications, making them ideal for microwave windows, radar domes, and shielding substratums in electronic settings up.
These residential properties remain stable over a broad temperature level array, unlike numerous polymers or traditional porcelains that degrade electrically under thermal stress and anxiety.
Chemically, quartz porcelains display amazing inertness to many acids, consisting of hydrochloric, nitric, and sulfuric acids, due to the stability of the Si– O bond.
However, they are vulnerable to attack by hydrofluoric acid (HF) and strong alkalis such as warm sodium hydroxide, which damage the Si– O– Si network.
This selective reactivity is made use of in microfabrication processes where regulated etching of fused silica is needed.
In aggressive commercial atmospheres– such as chemical handling, semiconductor damp benches, and high-purity fluid handling– quartz ceramics serve as liners, sight glasses, and reactor elements where contamination should be lessened.
3. Manufacturing Processes and Geometric Engineering of Quartz Porcelain Elements
3.1 Melting and Creating Techniques
The production of quartz porcelains involves several specialized melting methods, each customized to particular purity and application demands.
Electric arc melting uses high-purity quartz sand melted in a water-cooled copper crucible under vacuum cleaner or inert gas, generating big boules or tubes with superb thermal and mechanical residential or commercial properties.
Flame blend, or combustion synthesis, entails burning silicon tetrachloride (SiCl four) in a hydrogen-oxygen fire, transferring fine silica bits that sinter right into a transparent preform– this method generates the highest possible optical quality and is utilized for synthetic merged silica.
Plasma melting provides an alternative route, supplying ultra-high temperatures and contamination-free handling for niche aerospace and protection applications.
Once melted, quartz porcelains can be shaped through precision casting, centrifugal creating (for tubes), or CNC machining of pre-sintered spaces.
As a result of their brittleness, machining calls for diamond devices and cautious control to prevent microcracking.
3.2 Precision Construction and Surface Ending Up
Quartz ceramic components are commonly made into complicated geometries such as crucibles, tubes, poles, windows, and custom insulators for semiconductor, photovoltaic, and laser markets.
Dimensional accuracy is important, particularly in semiconductor manufacturing where quartz susceptors and bell jars must keep precise alignment and thermal uniformity.
Surface area completing plays a vital role in performance; polished surface areas minimize light scattering in optical parts and reduce nucleation sites for devitrification in high-temperature applications.
Engraving with buffered HF options can generate regulated surface textures or remove harmed layers after machining.
For ultra-high vacuum cleaner (UHV) systems, quartz ceramics are cleaned up and baked to eliminate surface-adsorbed gases, making certain marginal outgassing and compatibility with delicate processes like molecular light beam epitaxy (MBE).
4. Industrial and Scientific Applications of Quartz Ceramics
4.1 Function in Semiconductor and Photovoltaic Manufacturing
Quartz porcelains are foundational materials in the construction of incorporated circuits and solar cells, where they serve as heater tubes, wafer watercrafts (susceptors), and diffusion chambers.
Their capacity to endure high temperatures in oxidizing, decreasing, or inert atmospheres– incorporated with low metallic contamination– makes sure procedure pureness and return.
Throughout chemical vapor deposition (CVD) or thermal oxidation, quartz components preserve dimensional stability and stand up to bending, avoiding wafer damage and imbalance.
In photovoltaic production, quartz crucibles are made use of to grow monocrystalline silicon ingots by means of the Czochralski procedure, where their purity straight affects the electric quality of the final solar batteries.
4.2 Use in Lights, Aerospace, and Analytical Instrumentation
In high-intensity discharge (HID) lights and UV sanitation systems, quartz ceramic envelopes consist of plasma arcs at temperature levels surpassing 1000 ° C while sending UV and visible light effectively.
Their thermal shock resistance avoids failure during quick lamp ignition and shutdown cycles.
In aerospace, quartz ceramics are made use of in radar home windows, sensing unit housings, and thermal protection systems as a result of their reduced dielectric consistent, high strength-to-density ratio, and security under aerothermal loading.
In analytical chemistry and life scientific researches, integrated silica capillaries are necessary in gas chromatography (GC) and capillary electrophoresis (CE), where surface inertness protects against sample adsorption and makes sure precise splitting up.
Additionally, quartz crystal microbalances (QCMs), which rely on the piezoelectric homes of crystalline quartz (unique from integrated silica), use quartz ceramics as safety real estates and insulating supports in real-time mass noticing applications.
In conclusion, quartz ceramics stand for an one-of-a-kind intersection of extreme thermal durability, optical openness, and chemical purity.
Their amorphous structure and high SiO â‚‚ material make it possible for efficiency in settings where conventional products stop working, from the heart of semiconductor fabs to the edge of room.
As technology developments toward higher temperature levels, better accuracy, and cleaner procedures, quartz ceramics will certainly continue to serve as an essential enabler of innovation across science and market.
